It turns out that Ithaca, Traverse City, and Roswell are good places to hang out while the world burns

Alright, inspired by recent events, I’ve spent a bit (well, a lot) of time over the past couple months scratching an itch called “figuring out where in the US is safe from Armageddon.”

I had a lot of fun learning how to use a medley of QGIS features, learning where to find USGS GIS data, researching what targets the Russians/Chinese/French are are likely to target in a nuclear war, and learning how to render all this using Mapbox GL JS

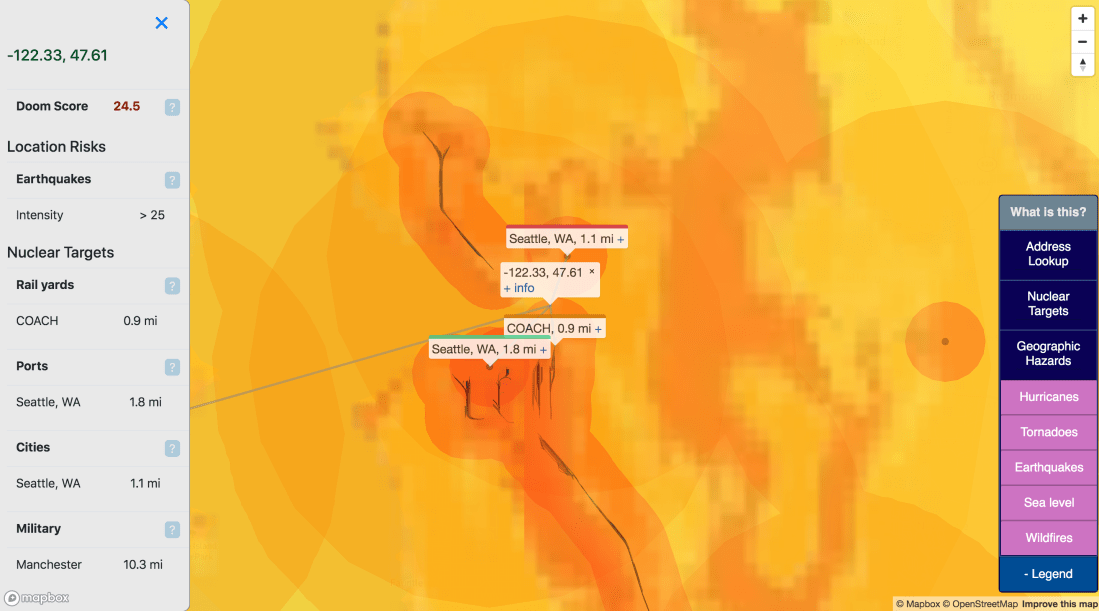

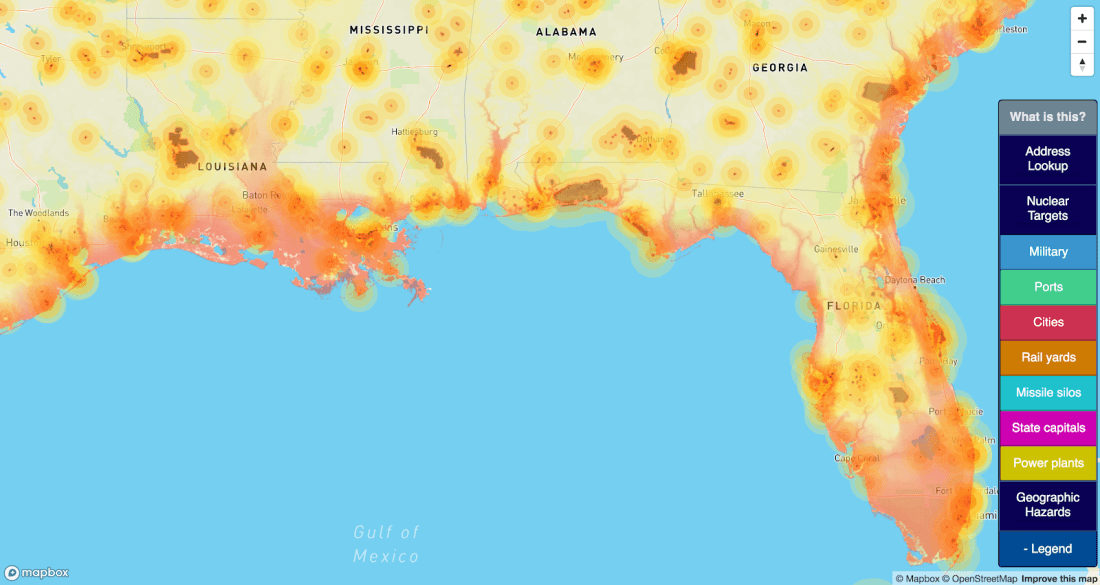

I’ve continued adding all this data as layers on my pet website, and now if you want, you can map any of the risk layers I’ve added:

  • Tornadoes
  • Earthquakes
  • Sea level rise
  • Hurricanes
  • Wildfires
  • Possible targets in a nuclear war

But it’s time to wrap it up and ask an actual actionable question:

“Given these potential hazards —both natural and man-made — which US cities are the least prone to unexpected natural or man-made disaster?”


As a ground rule, I limited the list of towns/cities I’d evaluate to those with populations of 10,000 or more, for a couple reasons:

  1. 10,000 is a reasonable cutoff for “towns which have all the basic infrastructure for urban life” – grocery stores, restaurants, etc (your threshold may be wildly different, and you should feel free to filter the data differently.)
  2. Even mapping out cities of 10,000+ was computationally challenging — it took a full 24 hours for me to do the QGIS join I needed on this data.  Mapping out towns of 1,000+ would have required a more sophisticated process.


Before I get too deep, I want to be very clear about all the relative metrics used here: they are based only on my judgement.  The raw data is all pretty well-sourced — I’m not fabricating any data points — but the weights of the relative risk bands are judgement-based. Interpret as you will.

First, I had four natural-disaster risk maps to parse: hurricanes, tornadoes, earthquakes, and wildfires.  I broke each of these risk zones into 4 hazard bands, informally “low, medium, high, and very high.”

Earthquakes: I was able to fairly directly translate earthquake data into hazard bands based on the USGS input data.  The units here takes a bit of work to wrap your head around (“peak acceleration as a % of gravity”), but it was easy enough to break this data into four bands:  10-20, 20-50, 50-70, and 70+

Wildfires: see this post for how I translated wildfire hazard data into discrete hazard bands. Lots of judgement involved.

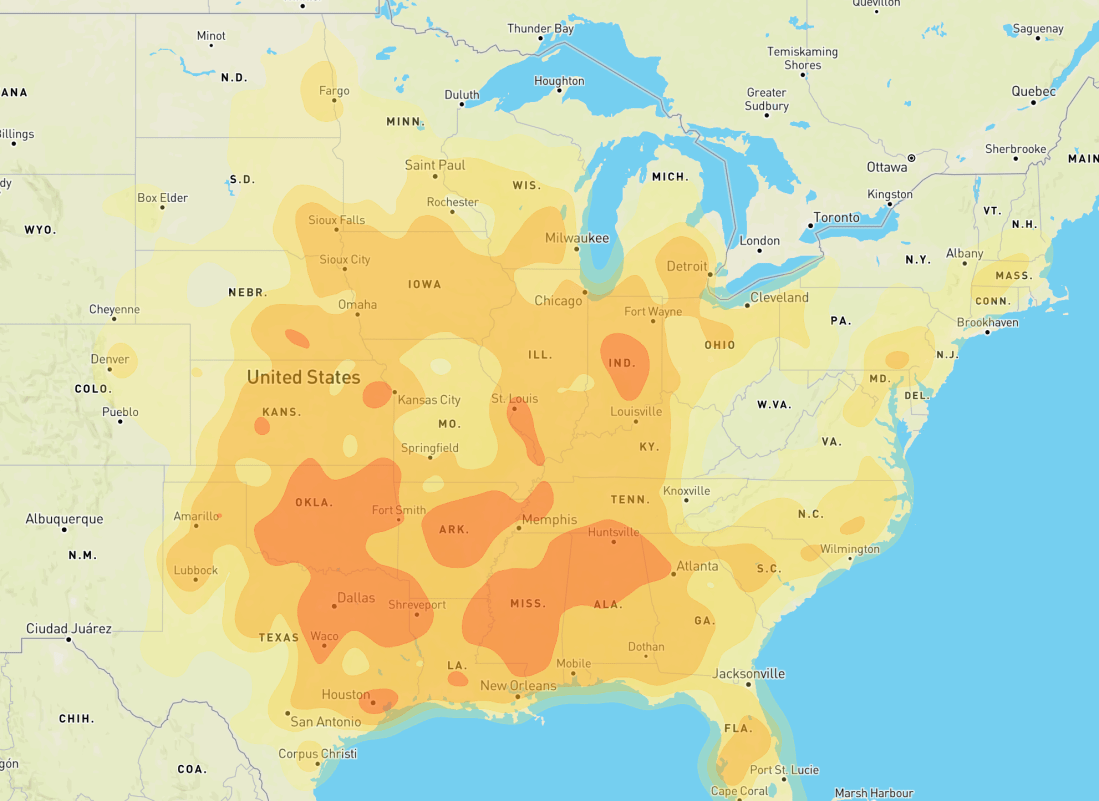

Tornados: see this post for how I found tornado hazard zones.

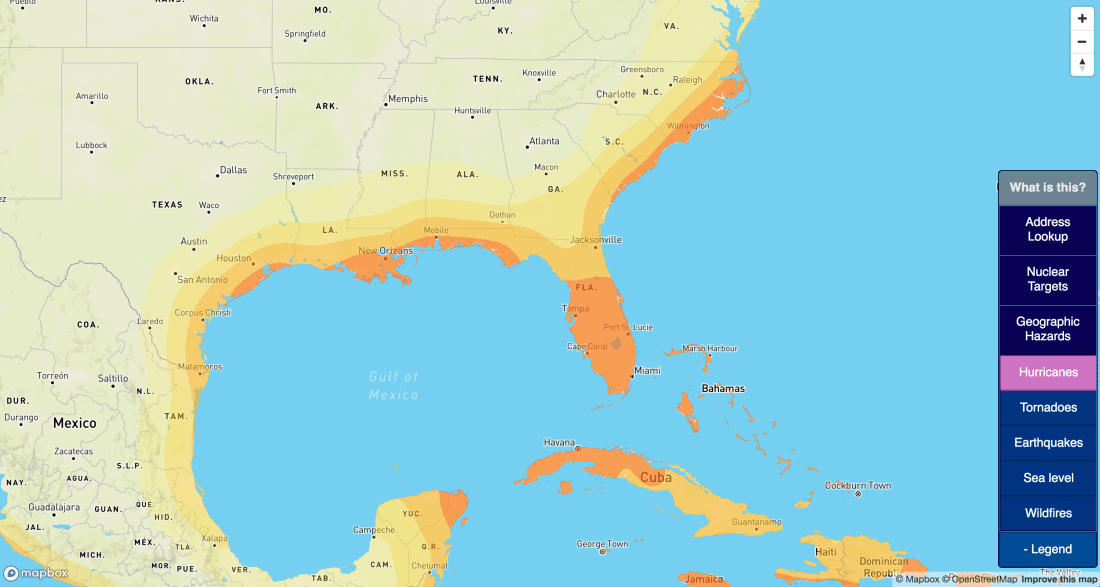

Hurricanes:  see this post for how I generated a hurricane risk map.

I assigned each of these zones a risk score.  These scores are entirely judgement-based (although as I’ll discuss later, these scores don’t actually matter much for the purposes of this post):

  • Low: 1
  • Medium: 4
  • High: 6
  • Very high: 8

Second, there’s the list of plausible infrastructure targets in a nuclear war.  For these purposes that means: military-capable airports, ports, military bases, state capitals, power plants (1+ GW), railyards, and nuclear missile silos.

I’ve used Alex Wellerstein’s NUKEMAP to judge “how close is too close” to a nuclear target.  I went with a 5MT nuclear warhead (a standard Chinese ICBM loadout), which gives four hazard bands:

  • Fireball: within 2km
  • 5 PSI airblast: within 12km
  • 3rd-degree burns: within 25km
  • 1 PSI airblast: within 34km

Like with the natural disasters above, I assigned each of these zones a risk score:

  • Fireball: 10
  • 5 PSI airblast: 5
  • 3rd-degree burns: 2
  • 1 PSI airblast: 1

You can read a bit more about the methodology I used here.

If you want to do your own calculations, with your own weights, here are the raw layers I used, and the script I used to calculate weights (I know it’s a mess.  It’s a personal project. Don’t judge me). You can reference this post for the script that turns the layers into the combined columnar cities.csv file.

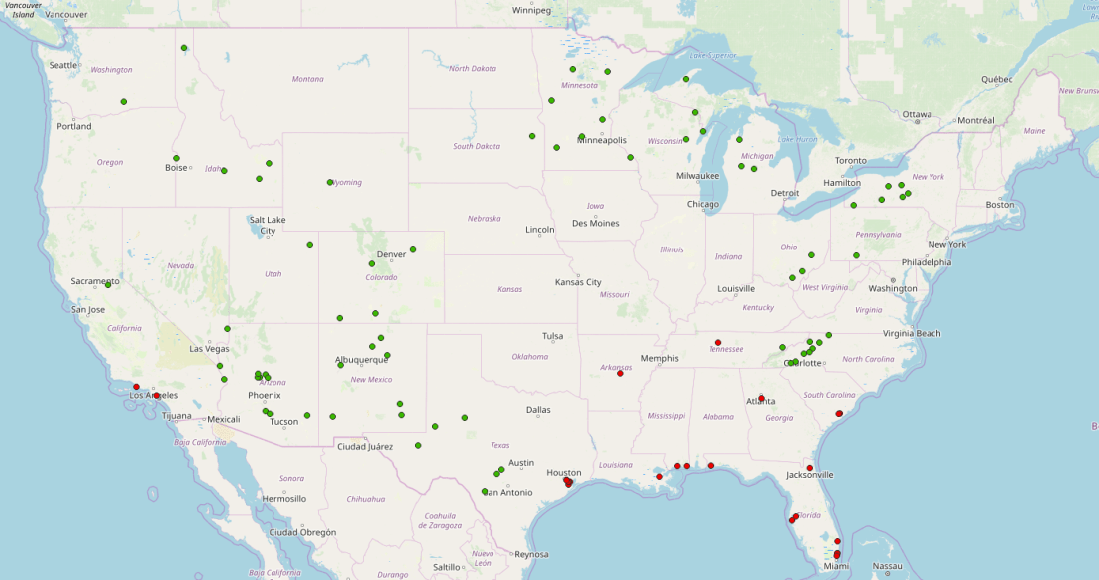

So, crunched all of the above data, and found…. 72 cities of 10,000+ people with no measurable risk, by those metrics.  Here’s the map:

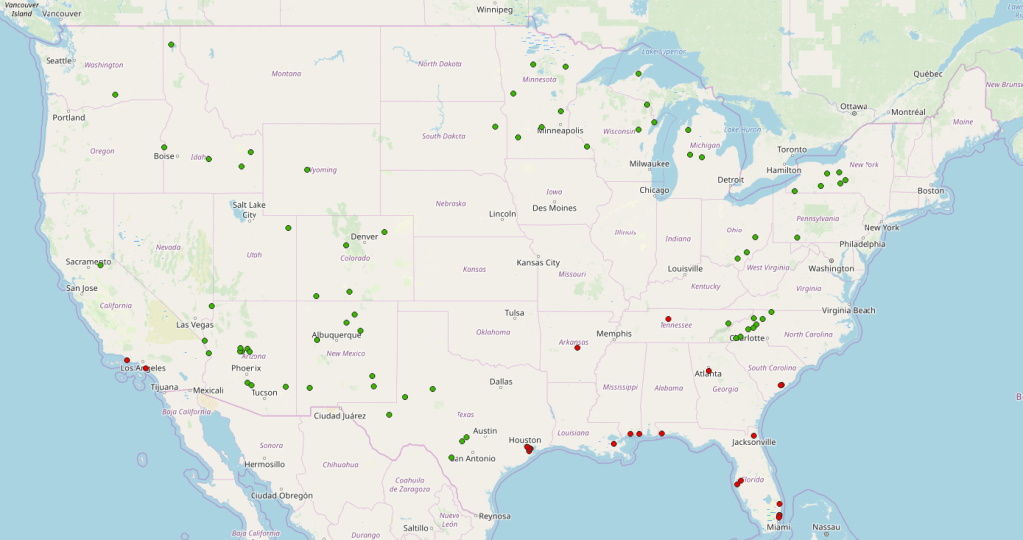

I’ve put a map of these cities on MapBox: you can explore the map here.  I’ve also included the worst 25 cities for reference, but I’ll save that discussion for a later post.


In no particular order:

Most of the Midwest is entirely ruled out because of the risk of tornadoes.  This may or may not be a reasonable bar, by your own judgement.

I had technical difficulties factoring flooding from sea level rise into these rankings.  “Luckily”, coastal cities ended up being death-traps for unrelated reasons, so I didn’t need to do any manual fiddling to exclude them.

There were fewer low-risk cities in Idaho, Nevada, Utah, and Montana than I expected.  Turns out, this is because:

  • The area around Yellowstone has a meaningful earthquake risk.  Given that Yellowstone is still an active supervolcano, this seems fair.
  • A lot of areas in Idaho and Nevada are totally safe from a risk perspective, but simply don’t have any cities of 10,000+ people which register.

If you end up working through the data from scratch, note that I did remove three cities which only made the list because of bad data:

  • Juneau and Anchorage.  Turns out, these cities have a huge nominal footprint, so the “city center” is actually in the middle of nowhere.  The real city centers are next to all sorts of important infrastructure (including a state capital).  I removed these from the “safe” list.
  • Newport OR is actually in a high-earthquake risk zone, but my map data puts the city in the middle of a river, which doesn’t register an overlap.  Instead of fiddling with the data, I just removed it.

There are likely others — I’m not going to sort through the remaining 72 by hand, but be aware that there are probably flukes.

Largest cities

This is actually a longer list of cities than I anticipated: I thought I’d get 1-2 strangely isolated cities free of hazards, not 72.  So we have a bit of leeway to interpret this data. The most straightforward question an urbanite would ask is,

“So what’s the largest city with no measurable hazards?”

We can answer that pretty easily.  Here are the top 9:

Prescott Valley, AZ97,066
Casa Grande, AZ58,632
Ithaca, NY55,439
Lake Havasu City, AZ55,341
Traverse City, MI49,806
Bullhead City, AZ49,531
Roswell, NM49,119
Maricopa, AZ46,741
Prescott, AZ42,731

Now, here’s where I’m going to roleplay Solomon:  I don’t care what this data says, nowhere — absolutely nowhere — in Arizona is a good place to ride out the apocalypse:

  • Arizona is, at best, barely inhabitable without Air Conditioning.  Global warming will only make this worse.  There is absolutely no point in surviving a nuclear war only to burst into flames the second your HVAC loses grid power.
  • Central Arizona is only hydrated by a gargantuan public works project.  An entire river is pumped over the Buckskin mountains to keep the geriatric heart of Phoenix feebly beating.  The minute a disaster strikes, Phoenix is going to be full of Sandworms and fremen raiding nursing homes to dessicate the elderly and steal their water.
  • The few — very few — places in Arizona with natural water are along the Colorado river.  If there’s a breakdown of law and order, Las Vegas is either going to (1) close the Hoover Dam and take all the water, or (2) get nuked and wash everything downstream of the Glen Canyon dam into Baja California.

So I am striking everything in Arizona from this list: Prescott Valley, Casa Grande (honestly, it’s a suburb of Phoenix, it’s just that the suburbs of Phoenix threaten to circle the earth) , Lake Havasu City, Bullhead City, Maricopa, and Prescott (why is this even distinct from Prescott Valley?)

Which leaves 3 cities.

The winners

This leaves us three cities which are (1) fairly large, (2) sheltered from natural disasters and (3) have absolutely nothing worth destroying:

  1. Ithaca, NY
  2. Traverse City, MI
  3. (I promise I did not tamper with the data to get this) — Roswell, NM


Ithaca was a bit surprising, but it’s reasonable in retrospect:

  • As a college town, Ithaca is reasonably large, driving it to the top of this list
  • As far as I can tell, it has no industry whatsoever
  • Although New York City is a Big Deal, upstate New York is pretty empty overall.  There’s really not much in the area that shows up in the target maps I generated:

So… not what I expected, but seems reasonable overall.

Traverse City

I have never heard of Traverse City MI before.  After reading the Wikipedia page, I have learned that “the Traverse City area is the largest producer of tart cherries in the United States”.  Apparently that is about it.

There are some military bases in the general area, but nothing that registers in the 34km buffer:

I have very little else to say about Traverse City, except that it seems safe from disaster.


I will be honest: I’ve always thought of Roswell in the context of UFO jokes, and never really considered that Roswell is a real city, full of real people, living real lives.

It turns out that it is a real city, but the largest industry is “Leprino Foods, one of the world’s largest mozzarella factories”, which is likely not a first-strike military target. It also turns out that the infamous Roswell Air Force Base closed in the late 60s, so there are no longer any military targets in the vicinity.

In fact, the closest risk of any significance, by these metrics, is a wildfire hazard zone to the east:

So Roswell, alien jokes aside, actually registers as the third-largest city utterly* safe from natural or man-made disaster.

*well, as best as I can figure.


I tried pretty hard to not pre-register expectations so I wouldn’t unconsciously bias my results.  So I don’t have anything interesting to say, like “that’s exactly what I expected” or “wow, I thought city XYZ would make the list!”

I feel pretty good about these results because:

  • They are geographically diverse.  It’s not all in some weird cluster because of bad data.
  • I didn’t end up having to draw an arbitrary cutoff.  72 is a good number of cities to greenlight.
  • Roswell is #3, which I still find hilarious.

I’ll do one last followup post with the worst-25 cities by these metrics.  Spoiler alert: it’s mostly the gulf coast and LA. But I’ll hopefully have that up in a week or two.

QGIS scripting — Checking point membership within vector layer features

Hit another QGIS snag. This one took a day or so to sort through, and I actually had to write code. So I figured I’d write it up.

I struggled to solve the following problem using QGIS GUI tools:

  • I have a bunch of points (as a vector layer)
  • I have a bunch of vector layers of polygons
  • I want to know, for each point, which layers have at least one feature which contain this point

Speaking more concretely: I have cities (yellow), and I have areas (pink). I want to find which cities are in the areas, and which are not:

I assumed this would be a simple exercise using the GUI tools. It might be. But I could not figure it out. The internet suggests doing a vector layer join, but for whatever reason, joining a point layer to a vector layer crashed QGIS (plus, this is slow overkill for what I need — simple overlap, not full attribute joins).

Luckily, QGIS has rich support for scripting tools. There’s a pretty good tutorial for one example here. The full API is documented using Doxygen here. So I wrote a script to do this. I put the full script on GitHub —you can find it here.

I will preface this before I walk through the code — this is not a clever script. It’s actually really, really dumb, and really, really slow. But I only need this to work once, so I’m not going to implement any potential optimizations (which I’ll describe at the end).

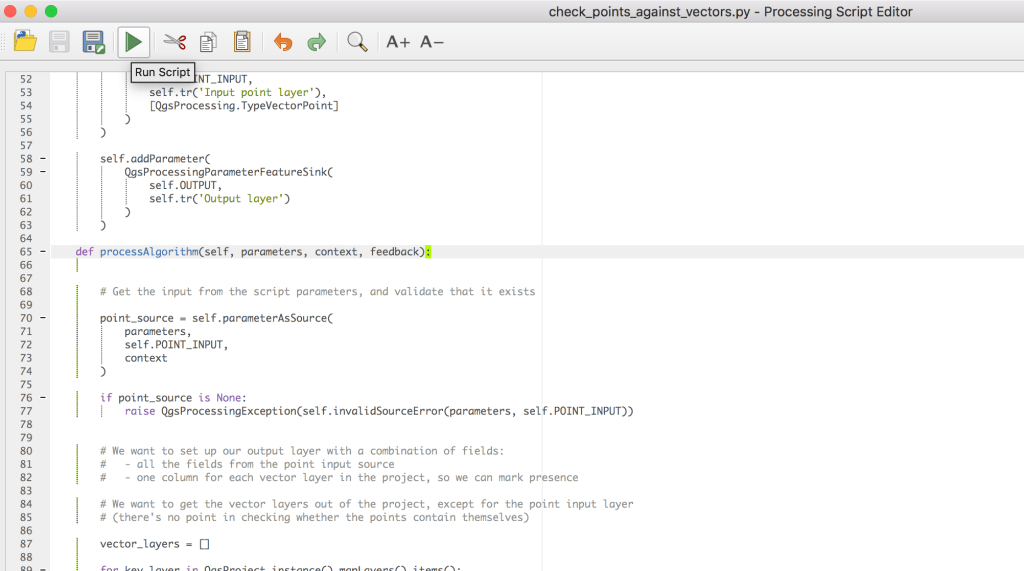

First, the basic-basics: navigate Processing  → Toolbox. Click “Create New Script from Template”

This creates — as you might expect — a new script from a template. I’ll go over the interesting bits here, since I had to piece together how to use the API as I went. Glossing over the boilerplate about naming, we only want two parameters: the vector layer with the XY points, and the output layer:

    def initAlgorithm(self, config=None):

      'Input point layer'),

      'Output layer')

Getting down into the processAlgorithm block, we want to turn this input parameter into a source. We can do that with the built-in parameter methods:

        point_source = self.parameterAsSource(

        if point_source is None:
            raise QgsProcessingException(self.invalidSourceError(parameters, self.POINT_INPUT))

A more production-ized version of this script would take a list of source layers to check. I could not be bothered to implement that, so I’m just looking at all of them (except the point layer). If it’s a vector layer, we’re checking it:

        vector_layers = []
        for key,layer in QgsProject.instance().mapLayers().items():
            if(layer.__class__.__name__ == 'QgsVectorLayer'):
                if( != point_source.sourceName()):
                    feedback.pushInfo('Skipping identity point layer: %s:' %point_source.sourceName())

We want our output layer to have two types of attributes:

  • The original attributes from the point layer
  • One column for each other layer, for which we can mark presence with a simple 0/1 value.
        output_fields = QgsFields(point_source.fields())
        for layer in vector_layers:
            feedback.pushInfo('layer name: %s:'
            field = QgsField(

Similar to the input, we want to turn the parameter into a sink layer:

        (sink, dest_id) = self.parameterAsSink(

        if sink is None:
            raise QgsProcessingException(self.invalidSinkError(parameters, self.OUTPUT))

Although it seems like a “nice to have”, tracking progress as we iterate through our points is pretty important; this script ran for 24 hours on the data I ran through it. If I had hit the 2 hour mark with no idea of progress — I’d certainly have given up.

Likewise, unless you explicitly interrupt your script when the operation is cancelled, QGIS has no way to stop progress. Having to force-kill QGIS to stop a hanging processing algorithm is super, duper, annoying:

        points = point_source.getFeatures()
        total = 100.0 / point_source.featureCount() if point_source.featureCount() else 0

        for current, point in enumerate(points):

            if feedback.isCanceled():

            feedback.setProgress(int(current * total))

From here on, we iterate over the target layers, and add to the target attributes if point is present in any feature in the target layer:

            attr_copy = point.attributes().copy()

            for layer in vector_layers:
                features = layer.getFeatures()
                feature_match = False
                geometry = point.geometry()

                for feature in features:
                    if (feature.geometry().contains(geometry)):
                        feature_match = True

Last but not least, we just output the feature we’ve put together into the output sink:

            output_feature = QgsFeature(point)
            feedback.pushInfo('Point attributes: %s' % output_feature.attributes())
            sink.addFeature(output_feature, QgsFeatureSink.FastInsert)

And that’s about it (minus some boilerplate). Click the nifty “Run” button on your script:

Because we wrote this as a QGIS script, we get a nice UI out of it:

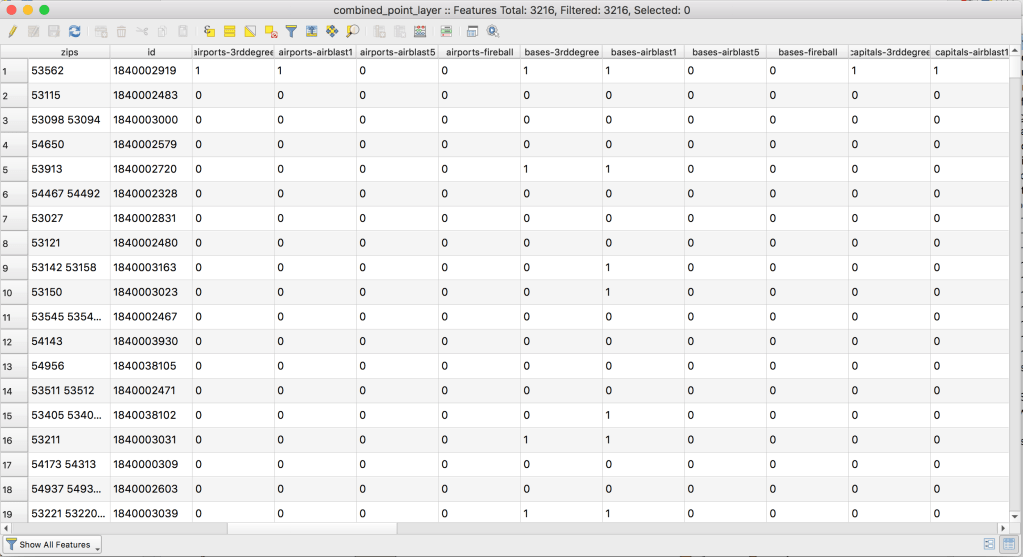

When we run this, it creates a new temporary output layer. When we open up the output layer attribute table, we get exactly what we wanted: for each record, a column with a 0/1 for the presence or absence within a given vector layer:


Now, this script is super slow, but we could fix that. Say we have n input points and m total vector features. The obvious fix is to run in better than n*m time — we’re currently checking every point against every feature in every layer. We could optimize this by geo-bucketing the vector layer features:

  • Break the map into a 10×10 (or whatever) grid
  • For each vector layer feature, insert the feature into the grid elements it overlaps.
  • When we check each point for layer membership, only check the features in the grid element it belongs to.

If we’re using k buckets (100, for a 10×10 grid), this takes the cost down to, roughly, k*m + n*m/k, assuming very few features end up in multiple buckets. We spend k*m to assign each feature to the relevant bucket, and then each point only compares against 1/k of the vector features we did before.

I’m not implementing this right now, because I don’t need to, but given the APIs available here, I actually don’t think it would be more than an hour or two of work. I’ll leave it as an exercise to the reader.

Anyway, I’d been doing my best to avoid QGIS scripting, because it seemed a bit hardcore for a casual like me. Turned out to be pretty straightforward, so I’ll be less of a wimp in the future. I’ll follow up soon with what I actually used this script for.

‘Education Facts’ Labeling — A Modest Proposal to Fix the Student Debt Crisis

College debt is a hot topic right now.  Elizabeth Warren wants to cancel most of it.  Bernie Sanders wants to cancel all of it. Donald Trump loves the idea of bankruptcy (not from college debt — just as a general principle).

But since forgiving student debt, like any meaningful reform in America, is a silly pipe dream, let’s instead fix it by eliminating information asymmetry.  Because if there’s anything American college students are not, it’s informed consumers.

Colleges are expensive, and costs have grown wildly faster than overall wage growth.  We all know that some majors, and some for-profit colleges, provide almost no value.  But since undergraduate education is a cash cow for universities, self-regulation of tuition growth — growth used to boost spending on new dorms, rec centers, and bureaucrats — by the universities themselves is utterly unrealistic.

The crowning achievement of the Food and Drug Administration — right alongside keeping children from dying of Salmonella — is accurate, mandatory, Nutrition Facts.  Nutrition Facts are a universal constant. Without them, the American consumer would be forced to perform difficult calculus like “quantify how much lard is in a medium-sized lardburger.”

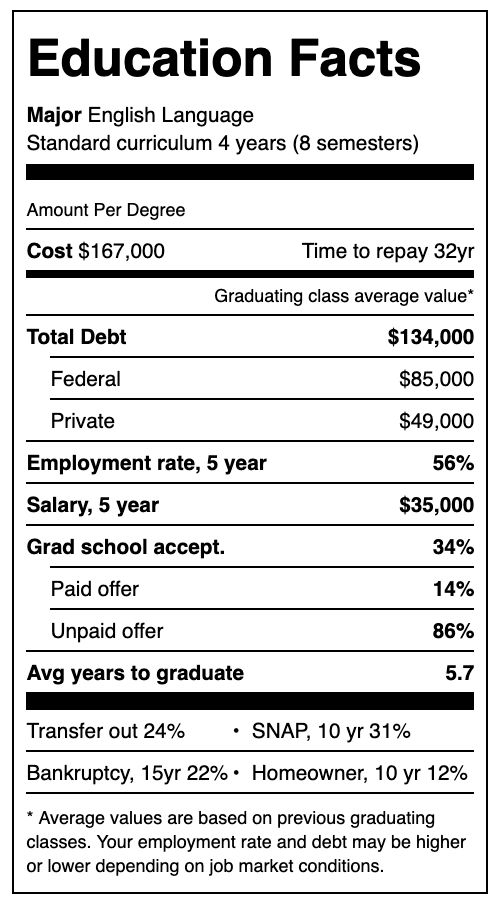

So, building on the wild success of Nutrition Facts, here’s my modest proposal: Federal Department of Education mandated Education Facts labeling:

This summary statistics table will give students the ability to identify which colleges can actually improve their futures, and which exist mainly as a parasitic drain on society.  Advertising will be totally legal — but must come coupled with vital statistics.  These will focus on:

  • Debt.  The big kahuna.  How far underwater is the average Philosophy major when they swim off the graduation stage?
  • Salary and employment.  5 years post-graduation, where is your career?  Can you dig yourself out of your debt before your children die?
  • Grad school acceptance.  If you’re going to die in debt, at least do it in style.  Can your undergraduate education help shelter you from the real-world with another 8-15 years of graduate school?

These statistics won’t just be available online.  McDonalds publishes nutrition facts online, but the mobility scooter market is as hot as ever.  These Education Facts will be attached to every form of advertisement produced by an institution of higher learning.

To help build a vision of this fully-informed world, I have illustrated a few examples:

College brochures — The paper deluge that every high-school student wades through during Junior through Senior years.  Education Facts would help triage this garbage pile, by filtering the wheat from the for-profit scams:


Billboards: Colleges are huge on billboards now-days.  It is only appropriate that claims like “career launching” be substantiated, in similarly giant font:


Sports:  College sports are, without a doubt, the most ironic yet effective form of higher-education advertising on the planet.  The only ethical use of this time and attention is to put numbers and figures in front of the eyeballs of impressionable high-school students:


This will not be an easy transition for America.  While calorie-labelling Frappuchinos at Starbucks inspired consternation, guilt, and shame across America, it did in fact cut calorie consumption markedly.

Education Facts will hurt lousy colleges.  It will hurt schools which peddle useless majors to naive students.  But the students of America will come out of it stronger, more informed, and more solvent than ever before.

Using the QGIS Gaussian Filter on Wildfire Risk Data

I thought was done learning new QGIS tools for a while.  Turns out I needed to learn one more trick with QGIS — the Gaussian filter tool.  The Gaussian filter is sparsely documented basically undocumented, so I figured I’d write up an post on how I used it to turn a raster image into vector layers of gradient bands.

Motivation:  In my spare time I’m adding more layers to the site I’ve been building which maps out disaster risks.  California was mostly on fire last year, so I figured wildfires were a pretty hot topic right now.

The most useful data-source I found for wildfire risk was this USDA-sourced raster data of overall 2018 wildfire risk, at a pretty fine gradient level.  I pulled this into QGIS:

(I’m using the continuous WHP from the site I linked).  Just to get a sense of what the data looked like, I did some basic styling to make near-0 values transparent, and map the rest of the values to a familiar color scheme:

This actually looks pretty good as a high-level view, but the data is actually super grainy when you zoom in (which makes sense — the data was collected to show national maps):

This is a bit grainy to display as-is at high zoom levels.  Also, raster data, although very precise is (1) slow to load for large maps and (2) difficult to work with in the browser — in MapBox I’m not able to remap raster values or easily get the value at a point (eg, on mouse click).  I wanted this data available as a vector layer, and I was willing to sacrifice a bit of granularity to get there.

The rest of this post will be me getting there.  The basic steps will be:

  • Filtering out low values from the source dataset
  • Using a very slow, wide, Gaussian filter to “smooth” the input raster
  • Using the raster calculator to extract discrete bands from the data
  • Converting the raster to polygons (“polygonalize”)
  • Putting it together and styling it

The first thing I did was filter values out of the original raster image below a certain threshold using the raster calculator.  The only justification I have for this is “the polygonalization never finished if I didn’t”. Presumably this calculation is only feasible for reasonably-sized raster maps:

(I iterated on this, so the screenshot is wrong: I used a threshold of 1,000 in the final version).  The result looks like this:

Next step is the fancy new tool — the Gaussian filter.  A Gaussian filter, or blur, as I’ve seen elsewhere, is kind of a fancy “smudge” tool.  It’s available via Processing → Toolbox → SAGA → Raster filter.

This took forever to run.  Naturally, the larger values I used for the radius, the longer it took.  Iterated on the numbers here for quite a while, with no real scientific basis;  I settled on 20 Standard Deviation and 20 search radius (pixels), because it worked.  There is no numerical justification for those numbers. The result looks like this:

Now, we can go back to what I did a few weeks ago — turning a raster into vectors with the raster calculator and polygonalization.  I did a raster calculator on this layer (a threshold of .1 here, not shown):

These bands are actually continuous enough that we can vectorize it without my laptop setting any polar bears on fire.  I ran through the normal Raster → Conversion → Polygonalize tool to create a new vector layer:

This looks like what we’d expect:

Fast forward a bit, filtering out the 0-value shape from the vector layer, rinse-and-repeating with 3 more thresholds, and adding some colors, it looks pretty good:

I want this on Mapbox, so I uploaded it there (again, see my older post for how I uploaded this data as an mbtiles file).  Applied the same color scheme in a Style there, and it looks nice:

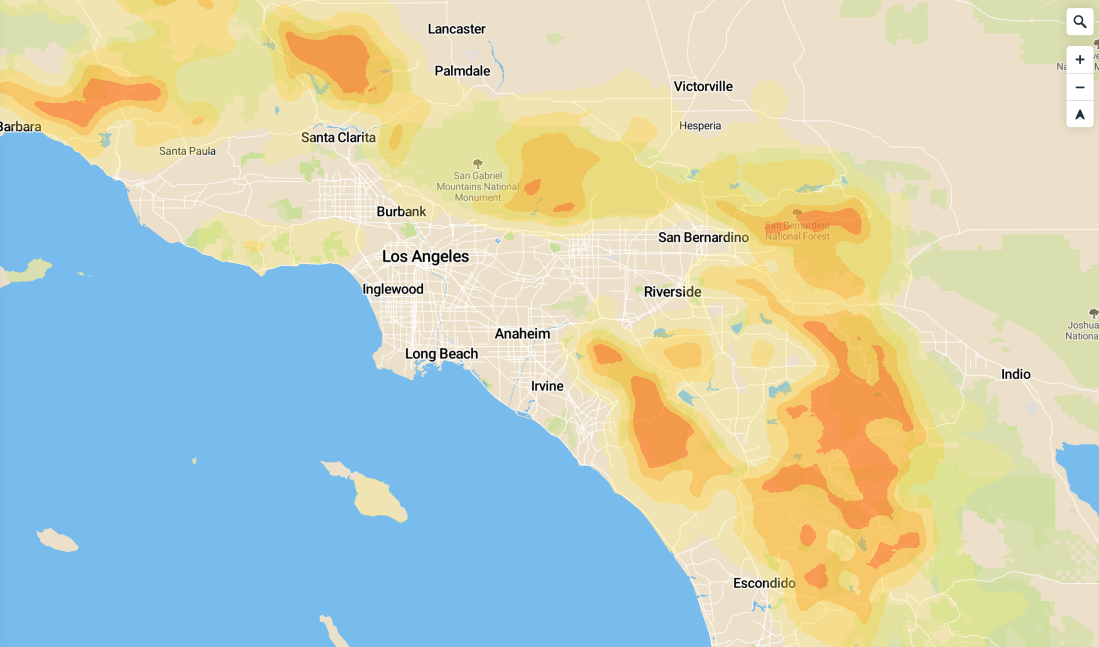

Just as a summary of the before and after, here is Los Angeles with my best attempt at styling the raw raster data:

You get the general idea, but it’s not really fun when you zoom in.  Here’s it is after the Gaussian filter and banding:

I found these layers a lot easier to work with, and a lot more informative to the end user.  It’s now visible as a layer on

I thought this tool was nifty, so hopefully this helps someone else who needs to smooth out some input rasters.

Firebase is cool — Easy IP geolocation on Mapbox GL JS page-load

(warning: this all is probably obvious to people who know Firebase, but I didn’t see any direct references to this feature, so I figured I’d write it up)

Over the past few weeks I’ve been learning my way around Firebase; I use it to host my current side-project, a webapp (, which uses Mapbox GL JS to render an interactive map of natural disasters, nuclear targets, and the like.

Today I took a shot at adding a convenience feature; during the initial page load, I wanted to zoom to the user’s actual location, instead of just defaulting to the center of the US.  Mapbox and Firebase have made this project stupidly easy so far, so I was optimistic this would also be easy.

Precise geolocation is certainly possible through Mapbox GL JS, but I’d have to use the actual browser location APIs; those require permissions, which is a noisy user-experience if it happens during initial page-load:

(and frankly, people have no reason to give my random webapp their location.  I’m not that important.)

A lighter-weight version of geolocation would be to just geo-locate based on the user’s IP address.  IP geolocation isn’t very accurate — IP addresses move around, so I’m not going to get more precision than a city.  For my purposes, that’s fine. And unlike real location, I don’t have to get permission to see a user’s IP address.*

Mapping IP address to a location still takes a dataset and a bit of work though.  A number of sites offer IP to location services, but I wasn’t really thrilled about creating an account with a location service, managing an API key, and giving my credit card to internet randos just for this convenience.

Luckily, I discovered an easier way: it turns out that even though I’m using Firebase and not AppEngine, all the AppEngine request headers are attached to my Firebase function requests.  Among those is x-appengine-citylatlong, which is (more or less) exactly what I want.

So, I built a tiny Firebase function which does nothing except listen for requests and pipe the location back into the response so I can use it in Mapbox:

'use strict';

const functions = require('firebase-functions');
const admin = require('firebase-admin');

const cors = require('cors')({
  origin: true

exports.getCoordinates = functions.https.onRequest((req, res) => {
  cors(req, res, () => {
      "data": {
        "coords": req.headers['x-appengine-citylatlong']

(this function ended up being pretty trivial, but I struggled for a bit because it wasn’t obvious (to me) how to directly return JSON from a Firebase function.  Firebase functions are (rightfully) built around the idea of returning Promises, because most Firebase functions proxy async services — storing data in database, putting it on GCS, etc.  It’s pretty unusual that a function is able to do what I do here — respond immediately, based only on the headers.)

Anyway, this function does exactly what I want it to do; it returns the coordinates of the request:

$ curl


On the Mapbox side, we can use this to flyTo the coordinates as soon as the map is loaded:

//  wait until the map is loaded
map.on('load', function () {

    // fetch the user coordinates from firebase
    var getCoordinates = firebase.functions().httpsCallable('getCoordinates');
    getCoordinates({}).then(function (result) {

      if ( {

          let latLong =",");

            //  note that lat/long are reversed in appengine
              center: [
              zoom: 11

Really, that’s it.  I’ve plugged a slightly more complicated version of this code into, and now it zoom to (roughly) the user’s location after the map loads.  With this trick, the geolocation is easy, cheap and simple, my favorite kind of trick : )

* do not try to teach me about GDPR.  I do not care.

More QGIS – Hurricane maps (lines to points and vector overlaps)

I posted a couple days ago about how I used QGIS to generate heatmaps of tornado activity based on raw point data.  Since I had invested time (kind of) learning the tool, I figured I should put together a few similar layers.

The most obvious choice was hurricane risk.  I ended up using a pretty similar procedure to when I generated the tornado heatmap, but massaging the data took a few extra steps:

  • The input data came as vectors instead of points
  • My data covered the whole globe, but I wanted the final vectors to only cover land areas

Again, I was happy with the result, so I figured I’d write it up.

Similar to what I ran into with the tornado risk data, I couldn’t find any hurricane hazard GIS shapefiles.  I did again find a raw dataset of all hurricanes the NOAA has records on, which was enough to get started.

Importing all the vectors (I think there were about 700,000) from this MapServer took a while, and the result was, as expected, a bit cluttered:

There’s probably a better way to filter the data down, but I ended up exporting the records to shapefiles so I could filter on attributes.  The dataset had a lot of tropical storm data, and I filtered out everything except proper hurricanes (H1-H5).

Here things got a bit different.  The heatmap function I used for tornadoes only works on points, and these vectors were all lines.  Luckily, there was a brute force but straightforward solution: turn the line into a bunch of points.  QChainage is a simple plugin that does exactly that.  Once it’s installed, it’s available from the Vector  →  QChainage menu.

The above screenshot is a bit deceptive — I ended up using a point spacing of 20km in the final version.  The only main downside of a higher frequency is longer processing time when generating the heatmap. The result kind of looks a mess from above:

But looks a lot better once I zoom in:

From here, I’ll fast forward through the same stuff I did last time; I used the points to generate a heatmap, this time using 250km point radii, and pulled a vector out of it.  I iterated on thresholds until the most expansive layer more-or-less lined up with other reputable sources. My layer:

Compared to what I found online (source):

Except for a few lumps in Virginia and Maine, it looks pretty comparable.

Jumping forward a bit more, I again went with four gradients to get a map that looked like this:

I was a bit torn.  While this looks cool, the highlights on the ocean are distracting when the goal is to highlight risk areas on land; I needed to filter the shapes down to only land areas.

It turns out, intersecting vectors in QGIS is pretty easy.  I found a simple shapefile of all land areas on earth here (it wasn’t even a big download — less than 10MB).  Once this data was imported, I could use the Vector → Geoprocessing tools → Intersect tool to generate an intersection layer:

This did exactly what I wanted.  I repeated this for all four layers and ended up with a gradient only over land areas, exactly what I wanted.  I didn’t bother styling the layers, since I’ll just handle that in Mapbox later.

Just as a sanity check, I swapped back in the openmaptiles background to make sure the coastlines lined up correctly (they did, except a few hundred meters here and there on the coastline).

A nice bonus from this NOAA data: this time the data covered the whole globe.  All the other datasets I’ve found for other natural disaster risks are US-specific (and usually only the continental US):

I won’t go through the details on loading this into Mapbox; everything from here mirrored what I did last time.  You can see the result as a layer on

Once again I was pleasantly surprised at how easy it was to get (relatively) nice looking graphics from QGIS with minimal experience.

At this point I’ve added data for most the layers I was interested in displaying (although I’m open to suggestions).  I’ll likely get back to the actual web-dev side of this project and clean up a few loose ends over the next couple weekends.

Using QGIS and Mapbox to Map Tornado Hotspots on

I’ve spent the last couple weekends putting together, which I posted about a couple weeks ago (the tl,dr is, “mapping out the riskiest places in the US to live”).

My focus has been on targets during a nuclear war, but I thought it would be fun to expand the project to include natural disaster likelihoods.  I didn’t have too much trouble finding datasets for elevation (to model sea level rise), earthquakes, and wildfires. Tornado risk seemed like a good next step.

I wanted a map that looked something like this (source):

(aside:  I grew up in the middle of Missouri, which according to this map, is literally the armpit of tornado alley.  And yet in the 15 years I lived there, I never saw even one tornado, and I am pretty salty about this.  Now I know why. More on this later.)

However, I needed the tornado hazard data formatted as GIS shapefiles or rasters so I could render it via Mapbox GL JS, the library I use to display webmaps.  Sadly, I had a lot of trouble finding a GIS-formatted risk map for tornadoes  The closest thing I found was a set of tornado starting points from 1950-2017.  This is a comprehensive dataset, but when I pulled it into QGIS and mapped it out, the raw data was a bit… noisy:

Since I couldn’t find a map that worked out of the box, I had no choice but to learn something new.  Luckily, I found a guide for making heatmaps in QGIS, which gave me a really good starting point. Less fortunately, the guide is for an old version of QGIS, and as a result I hit a number of obstacles I had to Google around.

I’m pretty happy with the result, and spent a fair amount of time learning how to use QGIS, so I figured I’d write up how I filtered this data into vector datasets and got it into Mapbox, where I display it as a layer on

Making a heatmap

Starting from the very beginning, we’ll want a new QGIS project.  So we have some visual context when playing around with these shapes, I added an OpenStreetMap base layer.  The tornado dataset we want to work with is available as shapefiles, and we can add that to QGIS via Layer → Add Layer → Add Vector Layer:

Our lives will be easier layer on if this data is all reprojected into EPSG:3857 – WGS 84 before we do any editing.  We can just do that first. Right click on the layer → Export → Save Features As:

Set the CRS to WGS 84, save, and we can work with the new reprojected layer from now on.

So our first problem is that this dataset is huge and noisy.  While I don’t recommend ignoring any tornadoes, I would not personally get off my couch for anything less than an F2 tornado, so that’s what I’m going to filter for.  Since this data is a shapefile, I can filter on the fields of the objects; right click on the new layer → Filter.

We’ll just filter on the “mag” column, looking for F2+ tornadoes:

This is a bit less cluttered, but still not super actionable.  From here, our goals are:

  • turn these points into a heatmap
  • extract discrete layers from the heatmap
  • save the extracted layers as shapefiles

Luckily for us, QGIS has a nifty heatmap tool which lets us turn our points into a heatmap raster.  Click on Processing → Toolbox → Interpolation → Heatmap:

Iterating on the settings here took a while; I had to experiment before I found settings that looked good.  I went with a 150km radius on the heatmap points, 4000 rows, and 10009 columns (once you select the number of rows, the columns auto-populate).  I played around with the colors on the resulting heatmap for a bit and ended up with this:

Intensity bands

While this is an improvement, it’s still kind of a hot mess (pun intended).  Heatmaps based on spotty data like this probably over-exaggerate the hotspots (there’s likely reporting bias, and we don’t want to overweight individual data points).  I’d prefer to get discrete intensity bands. To get those, we can use the raster calculator: Raster → Raster Calculator:

Since our heatmap values are no longer really connected to any actual unit, choosing units was a bit of guesswork.  Frankly, I just chose numbers that lined up with the risk areas I saw on other maps; the lowest gradient, 10, gives us this:

This is the kind of gradient band I’m interested in.  Unfortunately, this is still a raster image. We really want shapefiles — we can do more interesting things with them on Mapbox and in the browser, and the data is dramatically smaller.  Luckily, QGIS has tool to turn raster images into shapefiles: “polygonalize”. We can go Raster → Conversion → Raster to Vector:

We can select whatever we’ve named our filtered raster.  This gives us the previous image broken into two chunks:

We want to filter out the part that falls below our heatmap threshold.  Right click the layer → Properties → Filter:

Filter for where the feature value is equal to 1.  Now we’re down to the shapes we care about:

Of course we can play around with the layer styling to get it to look like whatever we want:

To capture the gradients we care about, we can repeat this process at a few thresholds to capture distinct bands.  These don’t correspond to any particular intensity, they are just intended to demarcate more and less intense risk areas.

Fast-forwarding the repetitive bits, I’ve repeated these steps with four raster calculator thresholds (with this dataset, I ended up using thresholds of 10, 25, 40, and 65).  By setting a different color on each layer I’ve produced and decreasing opacity to 50%, I got this:

This captures what I want; distinct gradient bands without overly-weighting hotspots.  If your goal is just to generate a static raster image, you can stop here and export this image directly.


My goal however is to import these layers into Mapbox so I can attach them to an existing interactive web map.  Mapbox is a platform for hosting customized maps and embedding them in apps or webapps; I use Mapbox, plus the corresponding Mapbox GL JS library, to host maps for  To get this data into Mapbox, we want to upload the data as a Tileset and use the data within a Style as feature layers.

I learned the hard way that there is a good way to do this, and a bad way to do this.  The simple way is to export each of the 4 bands as a GeoJSON file, upload it to Mapbox, and add it as a layer.  This is a mistake. Mapbox has a limit of 15 data “Sources” per Style, so saving each layer as a separate GeoJSON file and uploading them separately quickly caps out how many layers we can have per Style.

Luckily, Mapbox has released a nice tool called tippecanoe which lets us combine GeoJSON files into a single mbtiles file (it can do a ton of other things too; this is just what I’ve used it for).  An mbtiles file can have as many layers as we want, as long as it is under 25 GB.

First we want to extract each layer as a GeoJSON file; right click the layer → Export → Save Features As.

Choose GeoJSON and repeat for each layer.  This gives us four geojson files:

$ ls -lh *.geojson
-rw-r--r--  1 bpodgursky  640K Aug  1 22:46 tornado10.geojson
-rw-r--r--  1 bpodgursky  590K Aug  1 22:45 tornado25.geojson
-rw-r--r--  1 bpodgursky  579K Aug  1 22:45 tornado40.geojson
-rw-r--r--  1 bpodgursky  367K Aug  1 22:44 tornado65.geojson

We can use tippecanoe to combine these into a single, small, mbtiles file:

$ tippecanoe  -zg -o tornado.mbtiles — extend-zooms-if-still-dropping *.geojson
$ ls -lh tornado2.mbtiles
-rw-r--r--  1 bpodgursky  128K Aug  1 22:54 tornado.mbtiles

This gives us a single tornado.mbtiles file.

In practice I added these layers to an existing map for; for simplicity, here I’m going to set up a new empty Style.  After setting up a Mapbox account, navigate to Studio → Styles → New Style.  I use a blank background, but you can also choose an OpenStreetMap background.

We can add these layers directly to the Style.  Navigate through Add layer → Select data → Upload to upload the mbtiles file we just generated.  These features are small and should upload pretty quickly.  Once that’s available (you may need to refresh), we see that there are four layers in the new source:

We’ll create four new layers from this source.  We’ll just use the Mapbox studio to recreate the styling we want, and set the opacity so the overlay is visible but doesn’t obscure anything:

All I needed to do now was get this into a website.

Embedding on

Mapbox GL JS has great examples about how to get a Style in a map, so I won’t dig into the code too much; the important part is just loading a map from this style:

mapboxgl.accessToken = YOUR_TOKEN;

var map = new mapboxgl.Map({
  container: 'map', // the div we want to attach the map to
  style: 'mapbox://styles/bpodgursky/cjxw0v4fr7hd81cp6s0230lcw', // the ID of our style
  center: [-98, 40], // starting position [lng, lat] -- this is about the middle of the US
  zoom: 4 // starting zoom level

We can see the final result here, overlaid against OpenMapTiles on

Since our layer is just a simple vector tile layer, it’s easy to detect these features on-click for a particular point, along with any other enabled layers:

Wrapping up

It’s now pretty clear why I missed all the tornadoes as a kid — Tornado Alley (kind of) skips right over central Missouri, where I grew up!  My only explanation for this is, “weather is complicated”.

On the technical side, I was surprised how easy it was to generate a decent-looking map; Mapbox and QGIS made it stupidly easy to turn raw data into a clean visualization (and I’ve only been using QGIS for a couple weeks, so I’m sure I missed a few nice shortcuts.)

Now that I know how to turn ugly data into nice heatmaps or gradient data, I’ll probably work on adding hurricanes and flooding over the next couple weeks.  Stay tuned. — Mapping the Best Places to Wait out a Nuclear War

The news is quite clear: tensions with China are high, Russia is flaunting hypersonic missiles, and even newcomers Iran and North Korea will likely have sophisticated ICBM capabilities within a couple years.  While the general sentiment has been “yeah, nuclear war would definitely suck”, there’s been very limited conversation about how a nuclear war would actually play out, and what it would mean for the average American.

One artifact of the Cold War I find fascinating are the nuclear target maps which identified the likely first and second-strike targets in a nuclear war.  For those who felt the risk of a nuclear confrontation was high, these maps helped inform better and worse places to live.

Unfortunately, I’ve never seen a good resource that exposed this data using modern mapping tools.  I’ve wanted an opportunity to learn about GIS and front-end mapping libraries, so I decided I to build a similar map using modern browser-based map libraries.

I’ll likely follow up with a post about what this involved technically, but tl,dr it involved:

  • (light) research on which areas of the US are potential high-priority targets
  • (light) research on the impact radius of a nuclear bomb (primarily via NUKEMAP)
  • Finding public-domain maps of US infrastructure by type; these were pretty easy to grab from and the DOT
  • Calculating the blast radii around potential targets (simple buffers produced with QGIS)
  • Loading all these layers into Mapbox and exposing them on a simple site via Mapbox GL JS

You can see what I put together at, a very simple attempt at mapping out what places in the US would and would not be great places to live during a nuclear exchange.

Although most of the work here went into modeling nuclear targets, there were a few other un/natural disasters I thought would be interesting overlays:

  • Earthquake risk
  • Sea level rise (from global warming)

Normal disclaimer: I am not an expert on much of anything, and especially not on nuclear war.  The maps here should be taken exactly for what they are — aggregated publicly available datasets with minimal filtering or analysis.  Feedback is welcome from actual experts.

Nuclear War

Obviously nuclear war is always bad news, but even in a major war, not everyone is going to be instantly vaporized.  There are especially terrible places to live during a nuclear war — namely, next to any important targets. These maps try to identify for any location in the US whether there are any potential nearby bomb targets in a nuclear strike scenario, and the potential damage range from those strikes:

This map plots potential nuclear targets, sourced from public datasets. Right now I include:

  • Military bases
  • Ports
  • Major cities
  • Rail yards
  • ICBM missile silos
  • State capitals
  • Power plants

This post explains the data sources and filtering farther down.

All nuclear blast radii on this map are modeled on a 5 Mt nuclear airburst (a standard Chinese warhead).  Damage radii use estimates from Alex Wellerstein’s NUKEMAP; for more info, check out his site. This site renders nuclear blast impacts at 4 levels:

  • 2km: Fireball radius
  • 12km: Air blast radius (5 psi)
  • 25km: Thermal radiation radius
  • 34km: Air blast radius (1 psi)

On the map, the zones look something like this:

Modeling nuclear fallout accurately is a lot harder, and I have not attempted it at all.  The fallout zones depend on airburst height and wind conditions, which are both dynamic and complex.


This a quick description of each of the target layers available on  Since I don’t know what I’m doing, unless the selection criteria were very obvious, I erred on the side of presenting raw, un-filtered data.  So, many minor military bases, railyards etc are included even if they have no real significance.

Likewise, several categories of likely targets are not included yet, including but not limited to airports, refineries, shipyards, factories, and communication facilities.

Military bases

Strategic military bases are obvious targets in a nuclear war. This map displays all US military installations on US soil, with data sourced from the Department of Transportation.

This map makes no effort to distinguish between major and minor strategic targets; all installations are rendered as potential targets.


Major US ports are often cited as potential targets in either terrorist attacks or nuclear war, due to their important economic roles and proximity to economic centers.

This map sources a Department of Transportation list of major US ports. No effort was made to filter ports by importance or risk; all ports in this dataset are rendered as potential targets.

Major cities

Even in a major nuclear war, most cities are not valuable targets; only cities with important military targets or infrastructure are likely to be targeted.

This map displays all cities with a population over 100,000 (sourced here) only as a proxy for infrastructure that other layers do not capture.

No effort is made to filter cities by risk or strategic importance.

Rail yards

Cold War nuclear targets frequently include transportation hubs such as railyards. This map includes all US rail yards, as sourced from

This is a very inclusive map, and most of these rail yards have little to no strategic value. Without a better metric for inclusion though, all US railyards are modeled as potential targets.

ICBM missile silos

The first priority in a nuclear war is eliminating the enemy’s ability to respond with nuclear weapons. Ground-based nuclear missile silos are very high-value targets.

The United States maintains a ground-based ICBM force of three missile wings spread across Montana, North Dakota, Wyoming, Nebraska, and Colorado.

These silo locations have been sourced from Wikipedia, and no other effort was made to verify operational status.

State capitals

It is generally agreed that US state capitals will be considered high-value targets in a full nuclear war. This map includes all 50 US state capitals as targets.

Power plants

In a nuclear war, power production facilities will be targeted for their military and industrial value. This map pulls from Energy Information Administration datasets all facilities with over 1 GW of capacity, across all production types (coal, hydroelectric, nuclear, etc).

Uncontrolled Sea Level Rise

Unlike nuclear war, sea level rise won’t sneak up and vaporize you while you sleep. But it will make a house a really poor investment .

Most realistic global warming worst-case scenarios model a 5-10 foot sea level rise by 2100, which is, to be clear, Very Bad News, but is unlikely to sink you unless you live in the everglades.  This map goes further and asks “How far from the ocean would you want to be if all the ice melted — around 220 feet of it.

Elevation data was sourced here, at 100m resolution.

There are a lot of ways global warming could make a place uninhabitable — for example, making it really hot. But this map currently only captures raw sea level rise.


Earthquakes are usually bad news. Earthquake prediction is challenging, but it’s generally understood which areas of the country are most prone to earthquakes. This map attempts to display areas with especially high earthquake risks.

Earthquake risks are pulled from the 2014 USGS seismic-hazard maps found here. ‘Intensity’ represents the peak horizontal acceleration with 10% probability of exceedance in 50 years, measured as a percentage of gravity.

Only areas with over 10% g are rendered on location markers. 10% was only chosen because it is a round number.

Doom Score

I found that the buffers presented on the map were cool but made it challenging to make a head-to-head numeric comparison between locations.  To make this more straightforward, I added a “Doom Score” which aggregates the enabled hazards for a given point:

It’s not a sophisticated score:  for each enabled target layer, points are assigned by distance:

  • 0-2km: 10
  • 2-12km: 5
  • 12-25km: 2
  • 25-34km: 1

Earthquake risk is assigned as the %g exceedance as measured above by 10.  Eg, 20% chance of exceedance = 2 points. Summed together, these numbers may not represent a ton, but they are fun to compare.

So while Zillow (and similar services) provide useful info about neighborhoods like “Walk Score” and “Transit Score”, is the only place you can get a Doom Score.

Follow-ups / Help

I’m not an expert in anything presented on this map. There’s certainly a lot that could be improved:

  • This is by no means an exhaustive list of the things that can kill you. More hazards will (probably) be added to this map over time. Reach out if you have any specific interests (hurricanes, etc).
  • Expanded target lists from reliable data-sets (airports, etc)
  • Contributions appreciated from actual experts about ways to judge which targets are actually important.

I’ll update as I add content to this site (which may or may not happen frequently).   Feature requests and bug reports welcome. Best way to leave feedback is to email me directly at

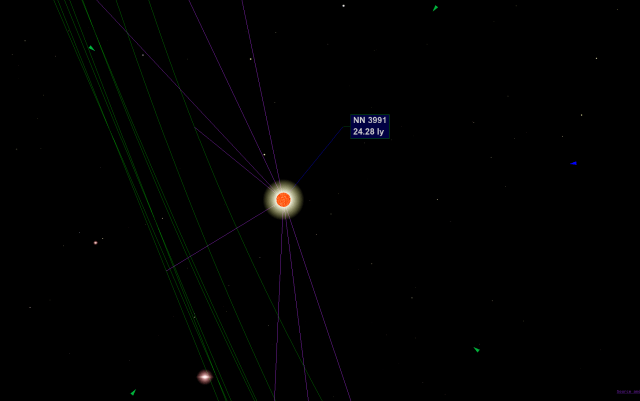

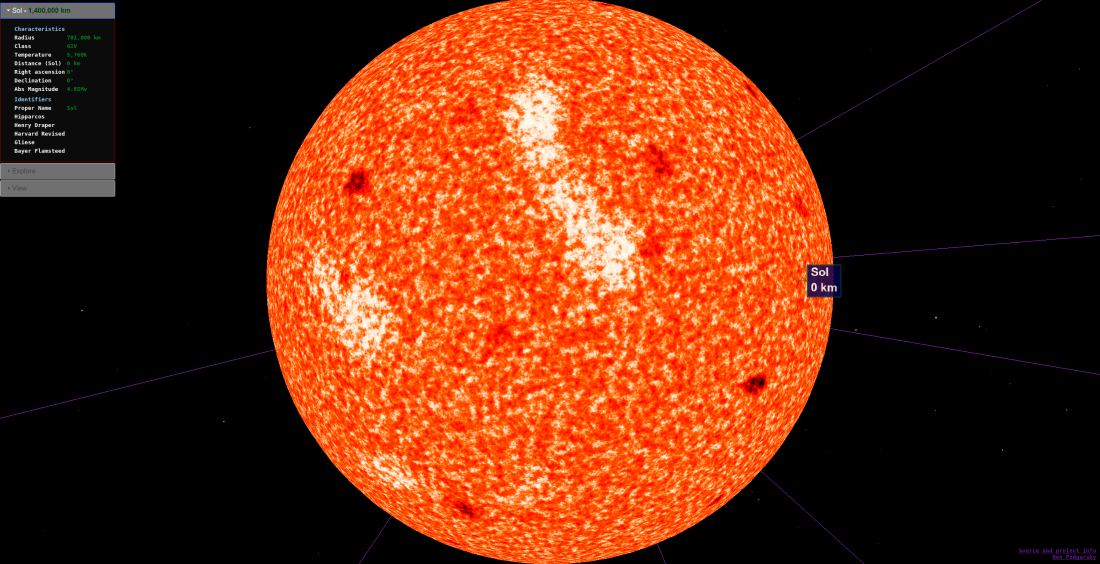

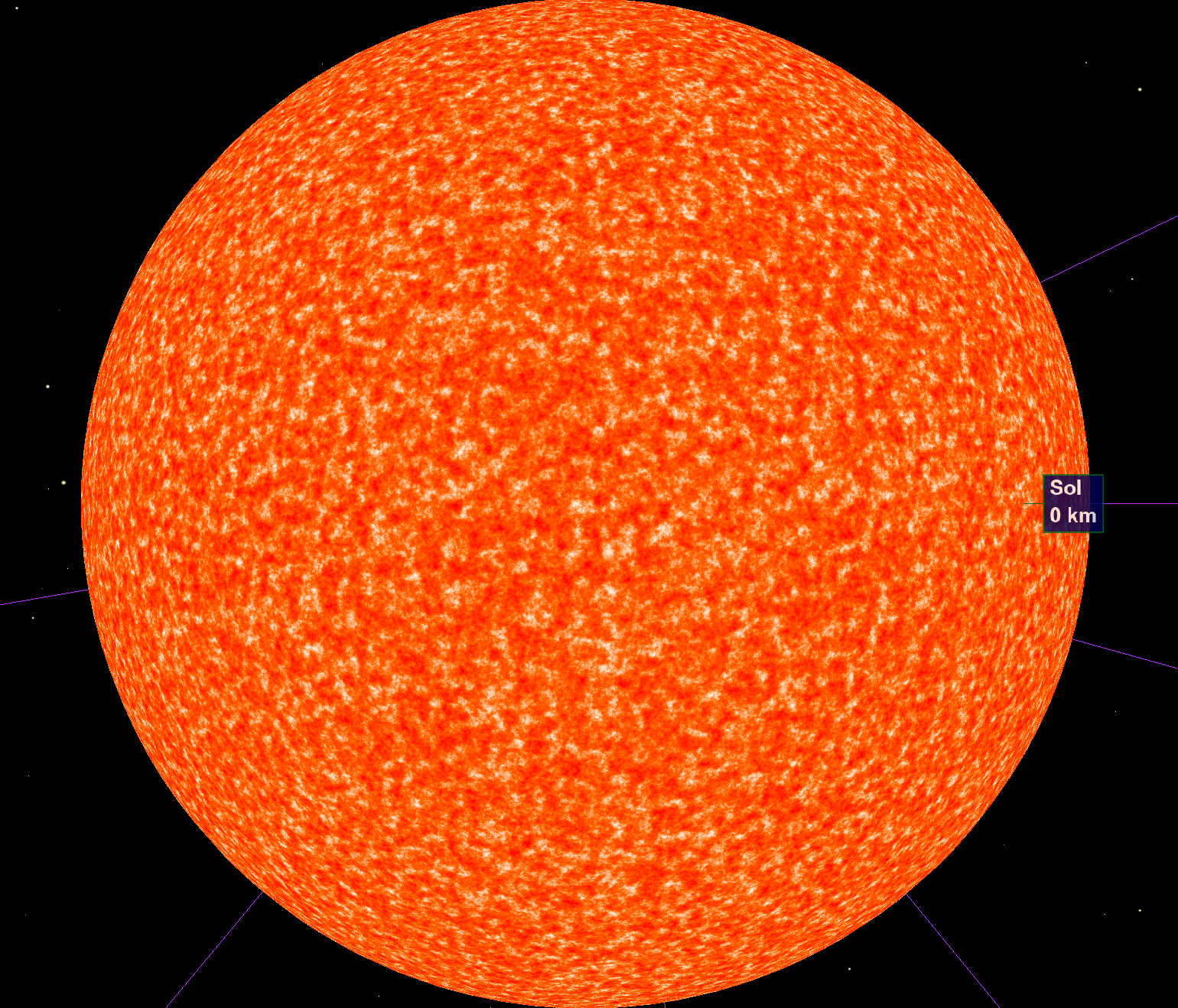

Procedural star rendering with three.js and WebGL shaders

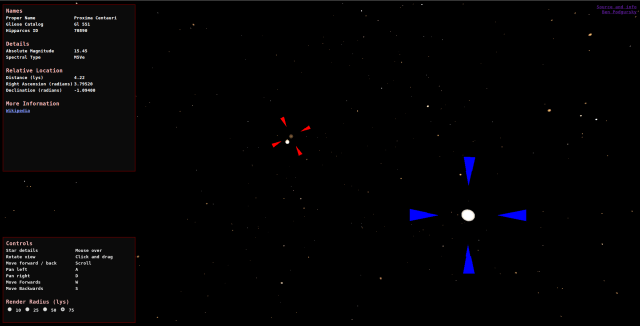

Over the past few months I’ve been working on a WebGL visualization of earth’s solar neighborhood — that is, a 3D map of all stars within 75 light years of Earth, rendering stars and (exo)planets as accurately as possible.  In the process I’ve had to learn a lot about WebGL (specifically three.js, the WebGL library I’ve used).  This post goes into more detail about how I ended up doing procedural star rendering using three.js.

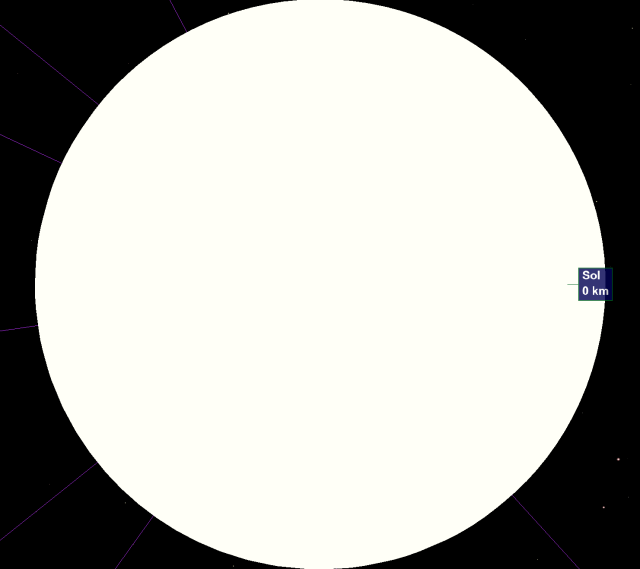

The first iteration of this project rendered stars as large balls, with colors roughly mapped to star temperature.  The balls did technically tell you where a star was, but it’s not a particularly compelling visual:


Pretty much any interesting WebGL or OpenGL animation uses vertex and fragment shaders to render complex details on surfaces.  In some cases this just means mapping a fixed image onto a shape, but shaders can also be generated randomly, to represent flames, explosions, waves etc.  three.js makes it easy to attach custom vertex and fragment shaders to your meshes, so I decided to take a shot at semi-realistic (or at least, cool-looking) star rendering with my own shaders.

Some googling brought me to a very helpful guide on the Seeds of Andromeda dev blog which outlined how to procedurally render stars using OpenGL.  This post outlines how I translated a portion of this guide to three.js, along with a few tweaks.

The full code for the fragment and vertex shaders are on GitHub.  I have images here, but the visuals are most interesting on the actual tool ( since they are larger and animated.

Usual disclaimer — I don’t know anything about astronomy, and I’m new to WebGL, so don’t assume that anything here is “correct” or implemented “cleanly”.  Feedback and suggestions welcome.

My goal was to render something along the lines of this false-color image of the sun:


In the final shader I implemented:

  • the star’s temperature is mapped to an RGB color
  • noise functions try to emulate the real texture
    • a base noise function to generate granules
    • a targeted negative noise function to generate sunspots
    • a broader noise function to generate hotter areas
  • a separate corona is added to show the star at long distances

Temperature mapping
The color of a star is determined by its temperature, following the black body radiation, color spectrum:


(sourced from wikipedia)

Since we want to render stars at the correct temperature, it makes sense to access this gradient in the shader where we are choosing  colors for pixels.  Unfortunately, WebGL limits the size of uniforms to a couple hundred on most hardware, making it tough to pack this data into the shader.

In theory WebGL implements vertex texture mapping, which would let the shader fetch the RGB coordinates from a loaded texture, but I wasn’t sure how to do this in WebGL.  So instead I broke the black-body radiation color vector into a large, horrifying, stepwise function:

bool rbucket1 = i < 60.0; // 0, 255 in 60 bool rbucket2 = i >= 60.0 && i < 236.0;  //   255,255
float r =
float(rbucket1) * (0.0 + i * 4.25) +
float(rbucket2) * (255.0) +
float(rbucket3) * (255.0 + (i - 236.0) * -2.442) +
float(rbucket4) * (128.0 + (i - 288.0) * -0.764) +
float(rbucket5) * (60.0 + (i - 377.0) * -0.4477)+
float(rbucket6) * 0.0;

Pretty disgusting.  But it works!  The full function is in the shader here

Plugging in the Sun’s temperature (5,778) gives us an exciting shade of off-white:


While beautiful, we can do better.

Base noise function (granules)

Going forward I diverge a bit from the SoA guide.  While the SoA guide chooses a temperature and then varies the intensity of the texture based on a noise function, I instead fix high and low surface temperatures for the star, and use the noise function to vary between them.  The high and low temperatures are passed into the shader as uniforms:

 var material = new THREE.ShaderMaterial({
   uniforms: {
     time: uniforms.time,
     scale: uniforms.scale,
     highTemp: {type: "f", value: starData.temperatureEstimate.value.quantity},
     lowTemp: {type: "f", value: starData.temperatureEstimate.value.quantity / 4}
   vertexShader: shaders.dynamicVertexShader,
   fragmentShader: shaders.starFragmentShader,
   transparent: false,
   polygonOffset: -.1,
   usePolygonOffset: true

All the noise functions below shift the pixel temperature, which is then mapped to an RGB color.

Convection currents on the surface of the sun generate noisy “granules” of hotter and cooler areas.  To represent these granules an available WebGL implementation of 3D simplex noise.    The base noise for a pixel is just the simplex noise at the vertex coordinates, plus some magic numbers (simply tuned to whatever looked “realistic”):

void main( void ) {
float noiseBase = (noise(vTexCoord3D , .40, 0.7)+1.0)/2.0;

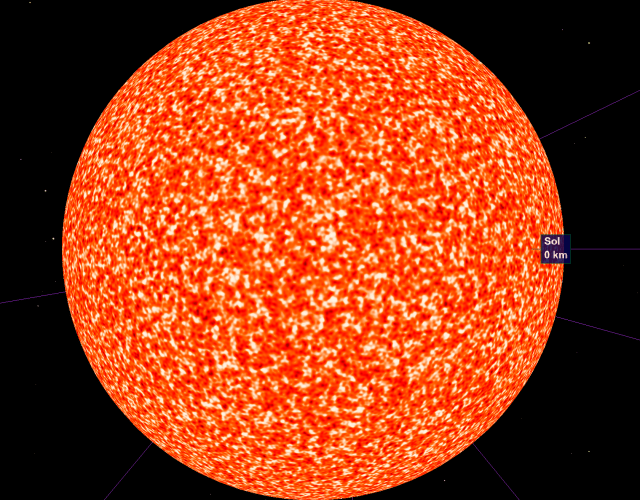

The number of octaves in the simplex noise determines the “depth” of the noise, as zoom increases.  The tradeoff of course is that each octave increases the work the GPU computes each frame, so more octaves == fewer frames per second.  Here is the sun rendered at 2 octaves:

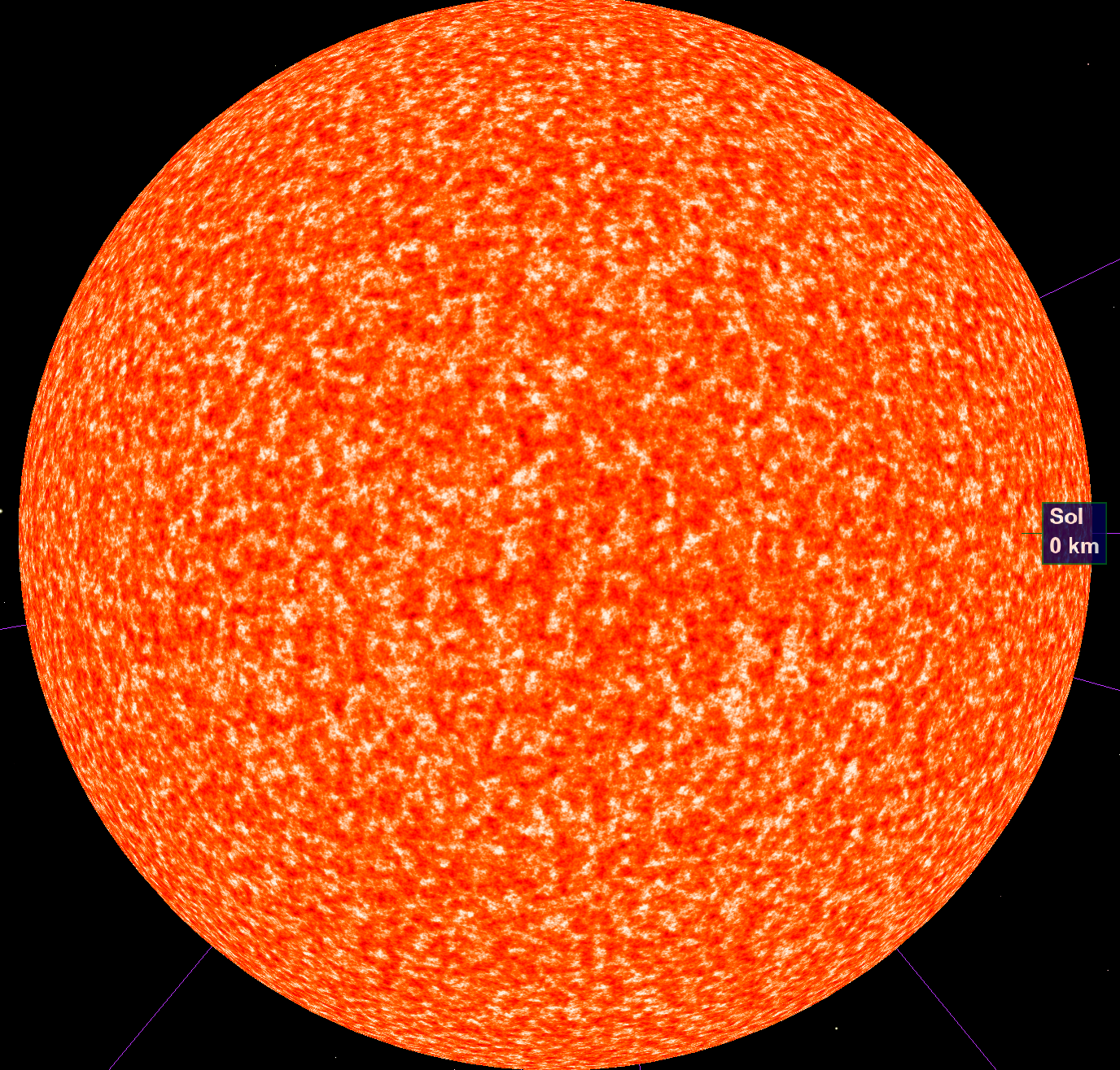

4 octaves (which I ended up using):


and 8 octaves (too intense to render real-time with acceptable performance):



Sunspots are areas on the surface of a star with a reduced surface temperature due to magnetic field flux.  My implementation of sunspots is pretty simple; I take the same noise function we used for the granules, but with a decreased frequency, higher amplitude and initial offset.  By only taking the positive values (the max function), the sunspots show up as discrete features rather than continuous noise.  The final value (“ss”) is then subtracted from the initial noise.

float frequency = 0.04;
float t1 = snoise(vTexCoord3D * frequency)*2.7 -  1.9;
float ss = max(0.0, t1);

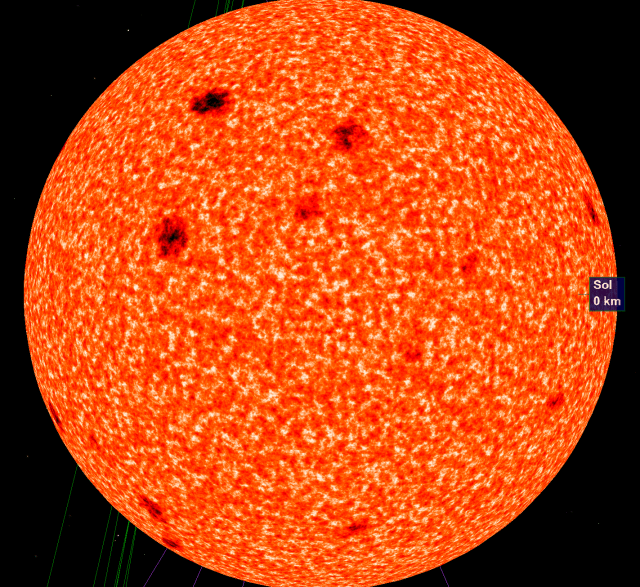

This adds only a single snoise call per pixel, and looks reasonably good:


Additional temperature variation

To add a bit more noise, the noise function is used one last time, this time to add temperature in broader areas, for a bit more noise:

float brightNoise= snoise(vTexCoord3D * .02)*1.4- .9;
float brightSpot = max(0.0, brightNoise);

float total = noiseBase - ss + brightSpot;

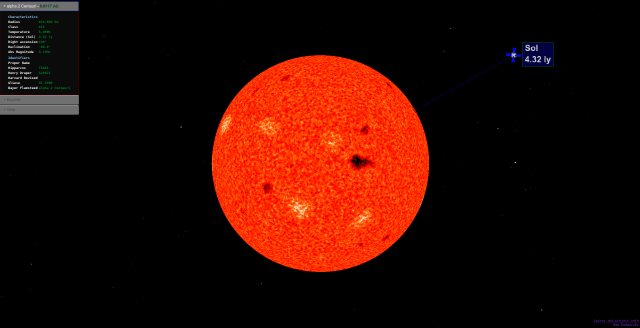

All together, this is what the final shader looks like:



Stars are very small, on a stellar scale.  The main goal of this project is to be able to visually hop around the Earth’s solar neighborhood, so we need to be able to see stars at a long distance (like we can in real life).

The easiest solution is to just have a very large fixed sprite attached at the star’s location.  This solution has some issues though:

  • being inside a large semi-opaque sprite (ex, when zoomed up towards a star) occludes vision of everything else
  • scaled sprites in Three.js do not play well with raycasting (the raycaster misses the sprite, making it impossible to select stars by mousing over them)
  • a fixed sprite will not vary its color by star temperature

I ended up implementing a shader which implemented a corona shader with

  • RGB color based on the star’s temperature (same implementation as above)
  • color near the focus trending towards pure white
  • size was proportional to camera distance (up to a max distance)
  • a bit of lens flare (this didn’t work very well)

Full code here.  Lots of magic constants for aesthetics, like before.

Close to the target star, the corona is mostly occluded by the detail mesh:


At a distance the corona remains visible:


On a cooler (temperature) star:


The corona mesh serves two purposes

  • calculating intersections during raycasting (to enable targeting stars via mouseover and clicking)
  • star visibility

Using a custom shader to implement both of these use-cases let me cut the number of rendered three.js meshes in half; this is great, because rendering half as many objects means each frame renders twice as quickly.


This shader is a pretty good first step, but I’d like to make a few improvements and additions when I have a chance:

  • Solar flares (and other 3D surface activity)
  • More accurate sunspot rendering (the size and frequency aren’t based on any real science)
  • Fix coronas to more accurately represent a star’s real visual magnitude — the most obvious ones here are the largest ones, not necessarily the brightest ones

My goal is to follow up this post a couple others about parts of this project I think turned out well, starting with the orbit controls (the logic for panning the camera around a fixed point while orbiting).

3D map of Solar Neighborhood using three.js (again!)

A few years ago I posted about a WebGL visualization of the neighborhood around our sun.  It was never as polished as I wanted, so on-and-off over the past few months I’ve been working on making it more interesting.  The project is still located here:

The code is still hosted on GitHub:

Two of the improvements I’m especially excited about.  First the star rendering now uses glsl shaders which are based on the star’s temperature, giving cool (and animated!) visuals:


Second, all known exoplanets (planets orbiting stars besides our Sun) are rendered around their parent stars.  The textures here are of course fake, but the orbits are accurate where the data is known:


I’ve also included all the full planets in our solar system with full textures and (hopefully accurate) orbits:


I’ve updated the README on the GitHub project with all the changes (I’ve also totally reworked the controls).

I’m going to try to write some more granular posts about what actually went into the three.js and glsl to implement this, since I learned a ton in the process.
